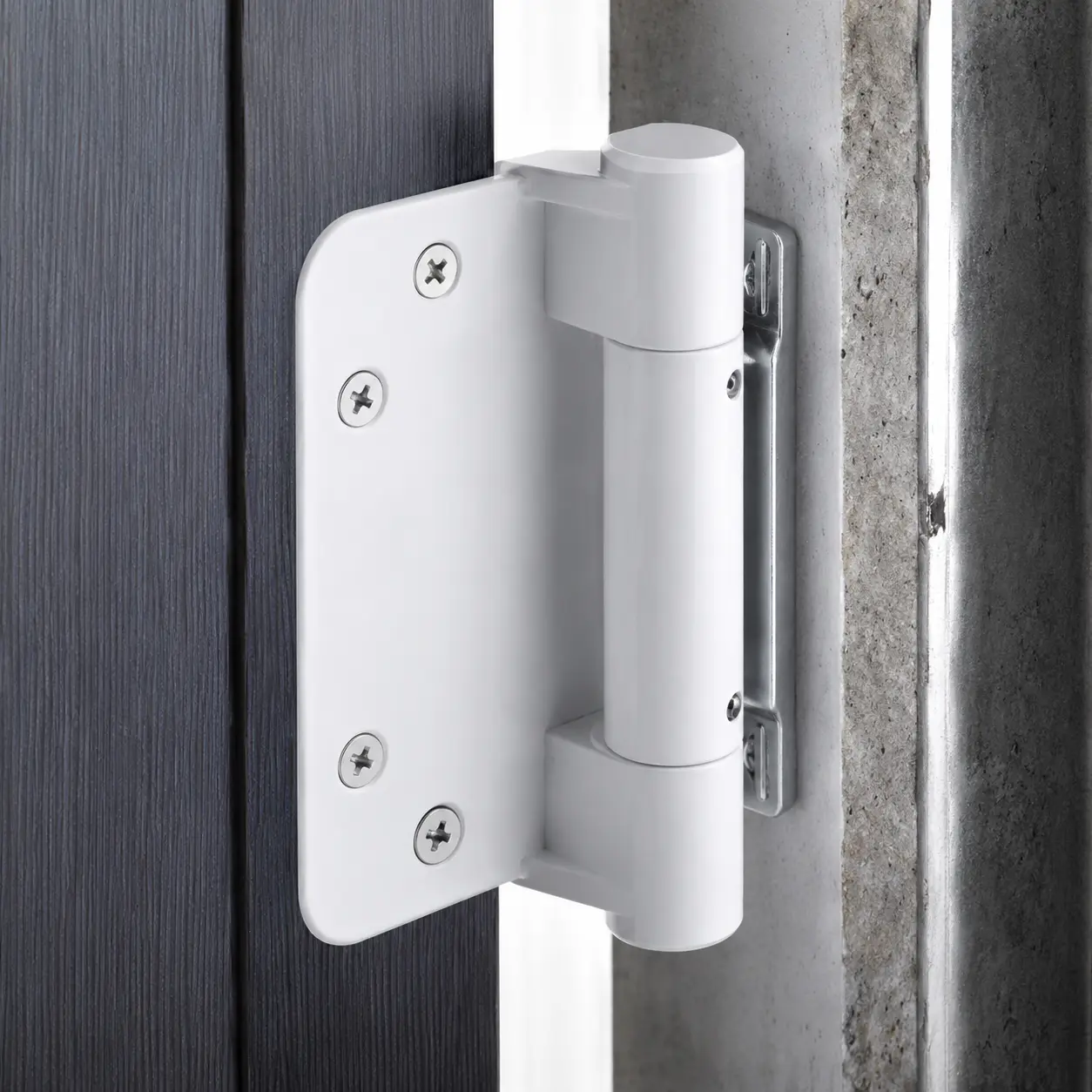

Athena Composite Hinge
The heavy duty Athena Hinge is suitable for Composite Doors. The patented Athena Hinge’s strength come from it double knuckle construction. Three Athena Door hinges have a combined carrying weight of 100kg, making them perfect for heavy duty applications such as large or triple glazed Composite Doors. The slim sightline Athena Hinge offers a slim aesthetically pleasing design with an unobtrusive appearance.
- Height and lateral adjustment achievable with door closed (Full Float Technology for visual alignment)
- No unsightly gaps visible following adjustment
- PAS 24: 2016 compatible as part of a door assembly
- Double knuckle construction for increased load bearing
- Fitter and installer friendly (Lift on, Lift off door design)
- Available in White, Black, Brown Oak (UV stabilised), Polished Chrome, PVD Gold and Satin Silver, (any RAL finishes available upon request)
- Guarantee* 10 years mechanical
- Patented unique design
Product Material Specifications:
- Zinc alloy
- Stainless Steel – Grade 430
- Plastic – GF Nylon, UV stabilised ABS and Acetal
Testing:
- Corrosion tested to BS EN 1670
- Painted finishes Grade 5, plated finishes Grade 4
- Alternatively 1,000 hours anti-corrosion on special painted finishes
- Conforms to EN1191 – tested to 100,000 cycles
- Can achieve PAS 24: 2016 as part of a door assembly
Adjustment:
- Height: +/- 4mm
- Lateral: +/- 4mm
Maximum Weight Carry Capacity:
- 3 hinges carry 100kg
Carton Quantity:
- 24 per carton
-
